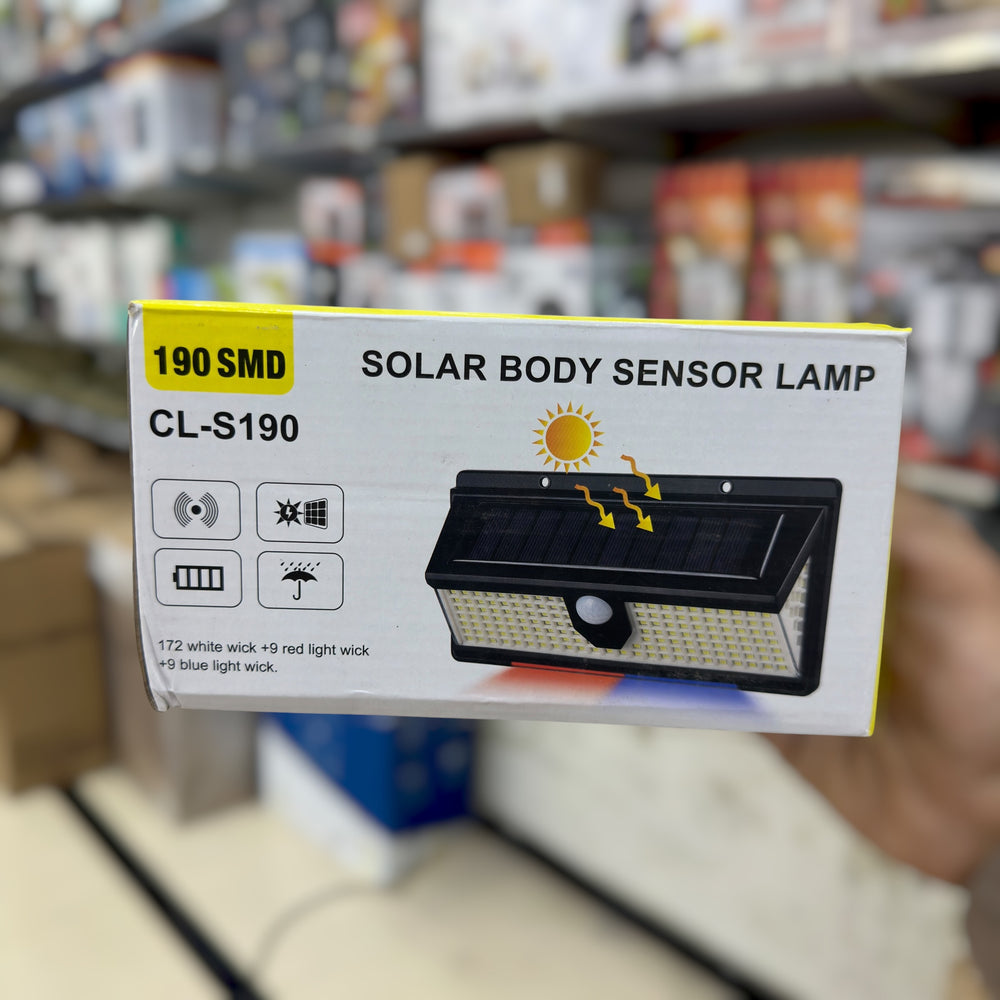

Solar Body Sensor Lamp 190 SMD CL-S190

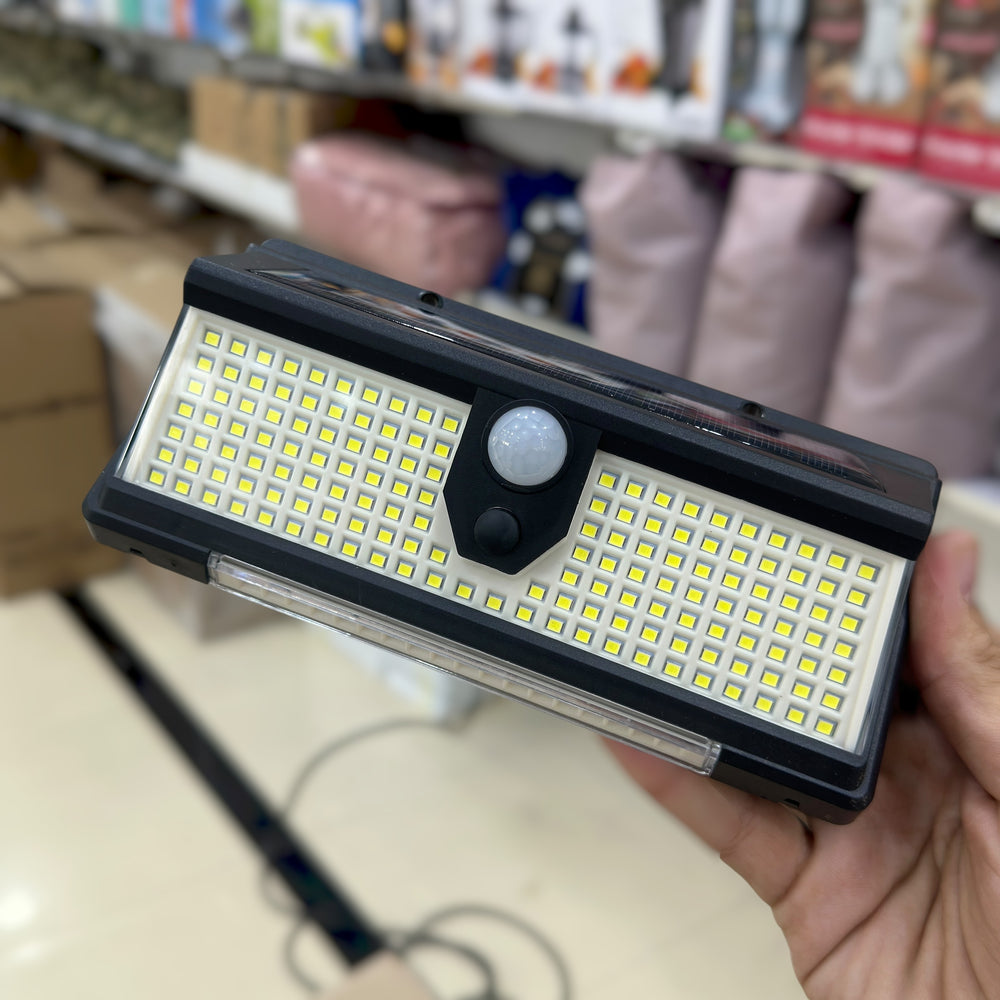

Solar Body Sensor Wall Lamp (Model: CL-S190) is an ultra-bright, wireless outdoor security light designed to provide automatic illumination for entryways, boundary walls, garages, and dark pathways. Packed with 190 high-brightness SMD LEDs, it offers a massive jump in visibility compared to standard 40- or 100-LED entry-level solar lights.

## Complete Technical Specifications

• Model Number: CL-S190

• LED Count: 190 High-Power SMD LEDs (Surface Mounted Diode)

• Battery Power: 3.6V / 1800mAh High-Capacity Lithium Battery

• Solar Panel: 5.5V / 2.5W Advanced Monocrystalline Silicon Panel

• Sensing Angle / Range: 120-degree wide-angle view over a 3 to 5-meter distance

• Waterproof Rating: IP65 Weatherproof & Heat-Resistant

• Charging Duration: $\ge$ 8 Hours of daylight exposure

• Illumination Angle: 4-Side multi-directional wide angle glow

## 3 Intelligent Automated Modes

To give you complete control over your home’s security and battery life, the CL-S190 features 3 distinct operational modes (switchable via the onboard button or included remote control):

• Mode 1 (PIR Motion Sensor Mode): The light remains completely OFF through the night. The moment the infrared sensor detects a human body approaching, it blasts onto 100% full brightness, then automatically shuts off 20 seconds after you walk away. (Highly recommended for maximum battery backup).

• Mode 2 (Dim + Motion Sensor Mode): The lamp stays on a low, energy-saving dimmed mode all night to mark your path. When motion is detected, it instantly surges to full 100% capacity and drops back to dim mode when the area becomes clear.

• Mode 3 (Constant Dusk-to-Dawn Mode): The motion sensor is bypassed. The lamp uses its built-in light sensor to turn on automatically at sunset at a medium, steady brightness and stays on continuously until sunrise or until the battery drains.

## Key Performance Features

• 4-Side Illumination Design: Unlike traditional flat panel lights that only cast beams directly forward, the SMD chips on the CL-S190 are wrapped around a multi-angled chassis. This allows it to throw brilliant white light across 4 directions at once, completely illuminating corner blind spots.

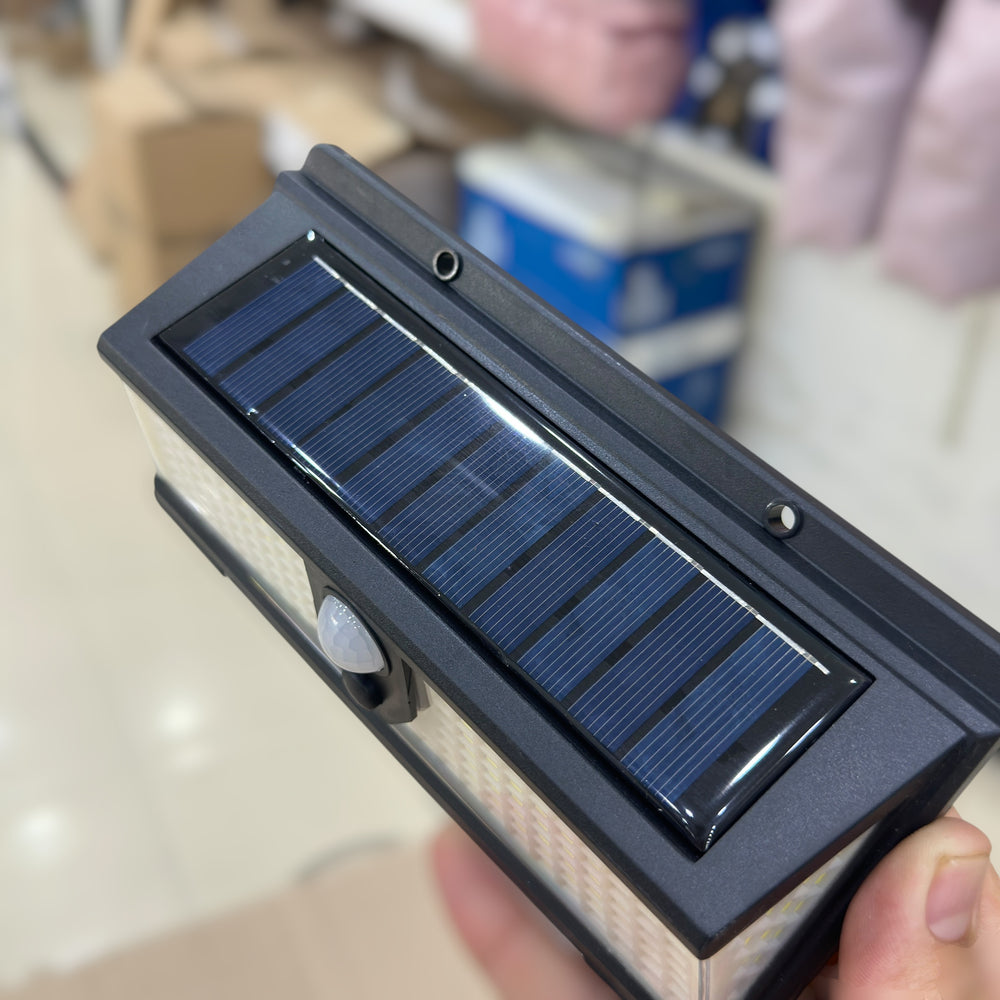

• Upgraded Low-Light Charging: Equipped with a premium monocrystalline solar panel, it captures energy at a higher efficiency rate than older polycrystalline designs. This allows it to trickle-charge the dual internal batteries even during hazy or overcast winter days.

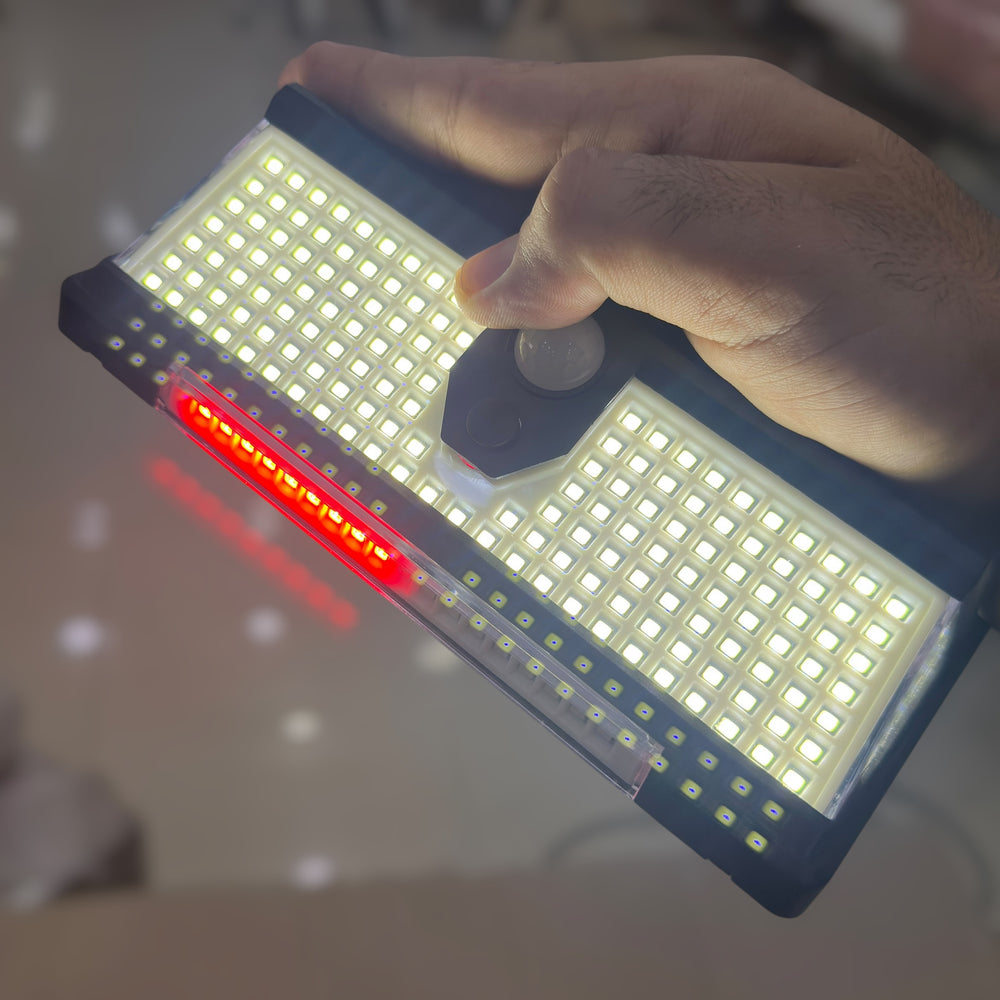

• Red and Blue Deterrent Flashers: Select variations of the CL-S190 include subtle red and blue blinking safety LEDs. This simulates a high-tech alarm or active security camera setup, acting as an excellent visual deterrent for potential intruders near your main gate.

• 100% Wire-Free Installation: Zero electrical wiring or trenching required. The lightweight ABS casing mounts flush to any exterior brick, concrete, or wooden surface in seconds using the included mounting anchors.

## Maintenance & Longevity

Because it is fully sealed to an IP65 standard, it handles heavy downpours, frost, and intense summer heat waves effortlessly. For optimal results, wipe down the top solar panel with a soft, damp towel once every few months to clear off settled dust and ensure the solar cells get maximum sun exposure.
