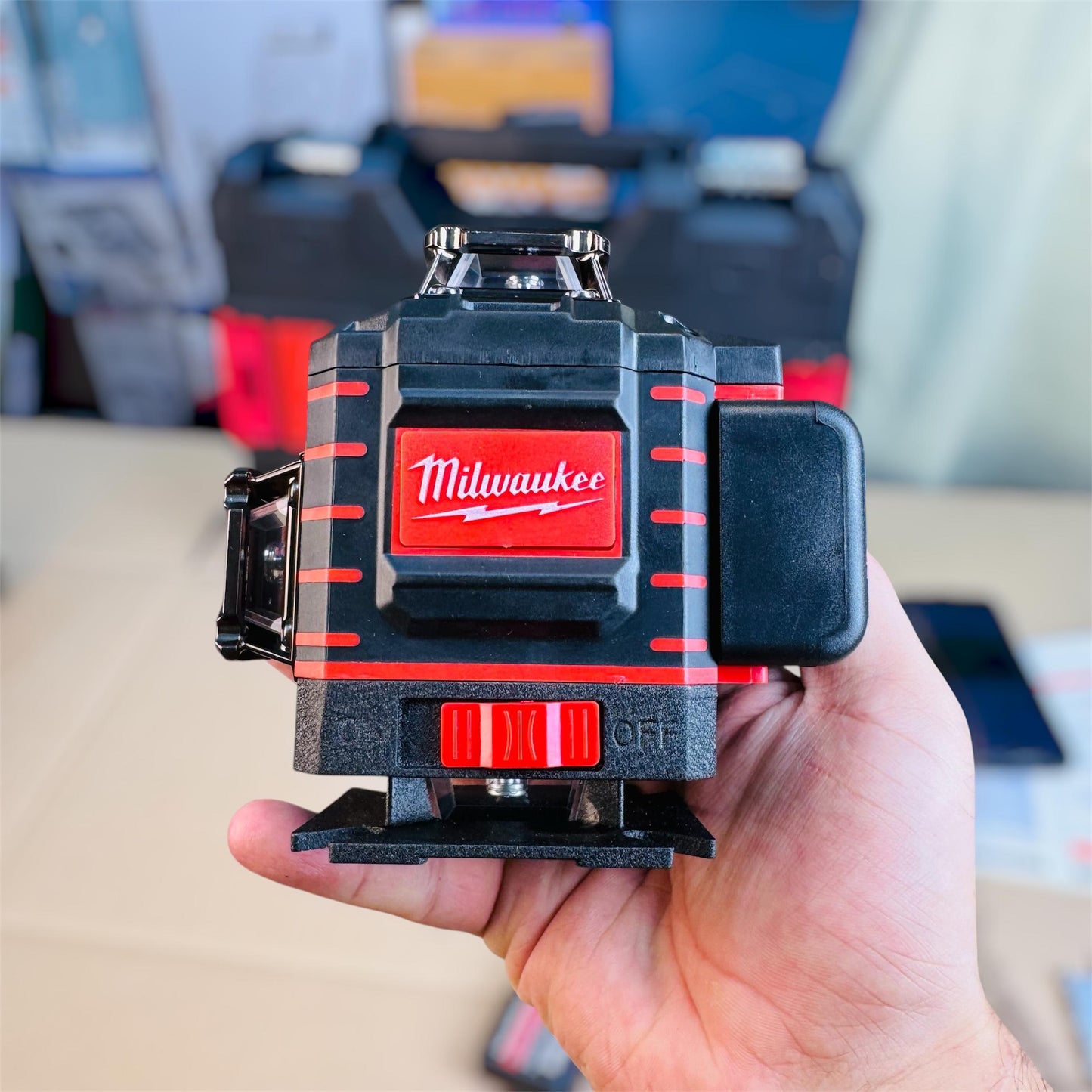

360° Green Beam Laser Level – Rechargeable 3-Plane Layout & Alignment Tool Professional Self-Levelling Laser Level | 360° Horizontal & Vertical Cross Lines

Name: 360° Green Beam Laser Level – Rechargeable 3-Plane Layout & Alignment Tool Professional Self-Levelling Laser Level | 360° Horizontal & Vertical Cross Lines
Brand: Brother Electronics
Price: 16,499.00 PKR
Availability: InStock

Rs.16,499.00 PKR

Sale Sold out

Shipping calculated at checkout.

Cash on
Delivery

15-Day
Exchange

100% Original
Products

Warranty
Available

Precision Layout for Every Jobsite – 360° Rechargeable Laser Level

Engineered for heavy-duty construction, interior fitting, and precise levelling, this 360° Rechargeable Laser Level projects continuous 360-degree horizontal and vertical laser planes, allowing tradespeople to reference an entire room simultaneously without repositioning the unit.

Technical Specifications:

Feature	Specification
Laser Color & Visibility	High-Intensity Green Diode (up to 4x brighter than red lasers)
Laser Planes	360° Horizontal Line, up to two 360° Vertical Lines (3-Plane / 12–16 Lines)
Working Range	125 ft visible line / 165+ ft with optional laser detector
Levelling Accuracy	±1/8 in at 33 ft (±3 mm at 10 m)
Self-Levelling Range	Automatic pendulum self-levelling within ±4° tilt
Power System	Rechargeable Li-Ion Battery (M12 or USB Rechargeable RedLithium style)
Durability & Rating	IP54 dust/water resistance & 1-meter drop/impact resistance

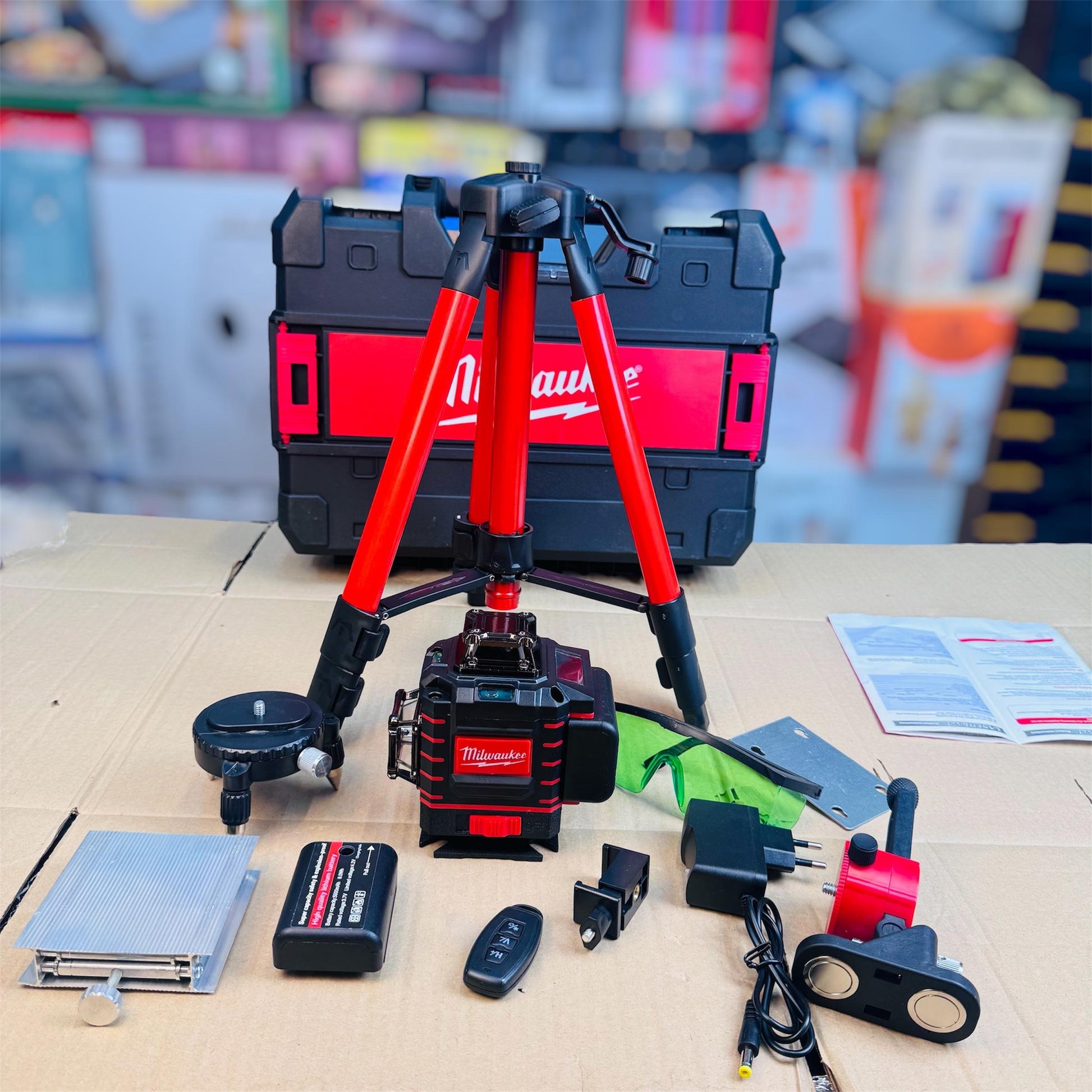

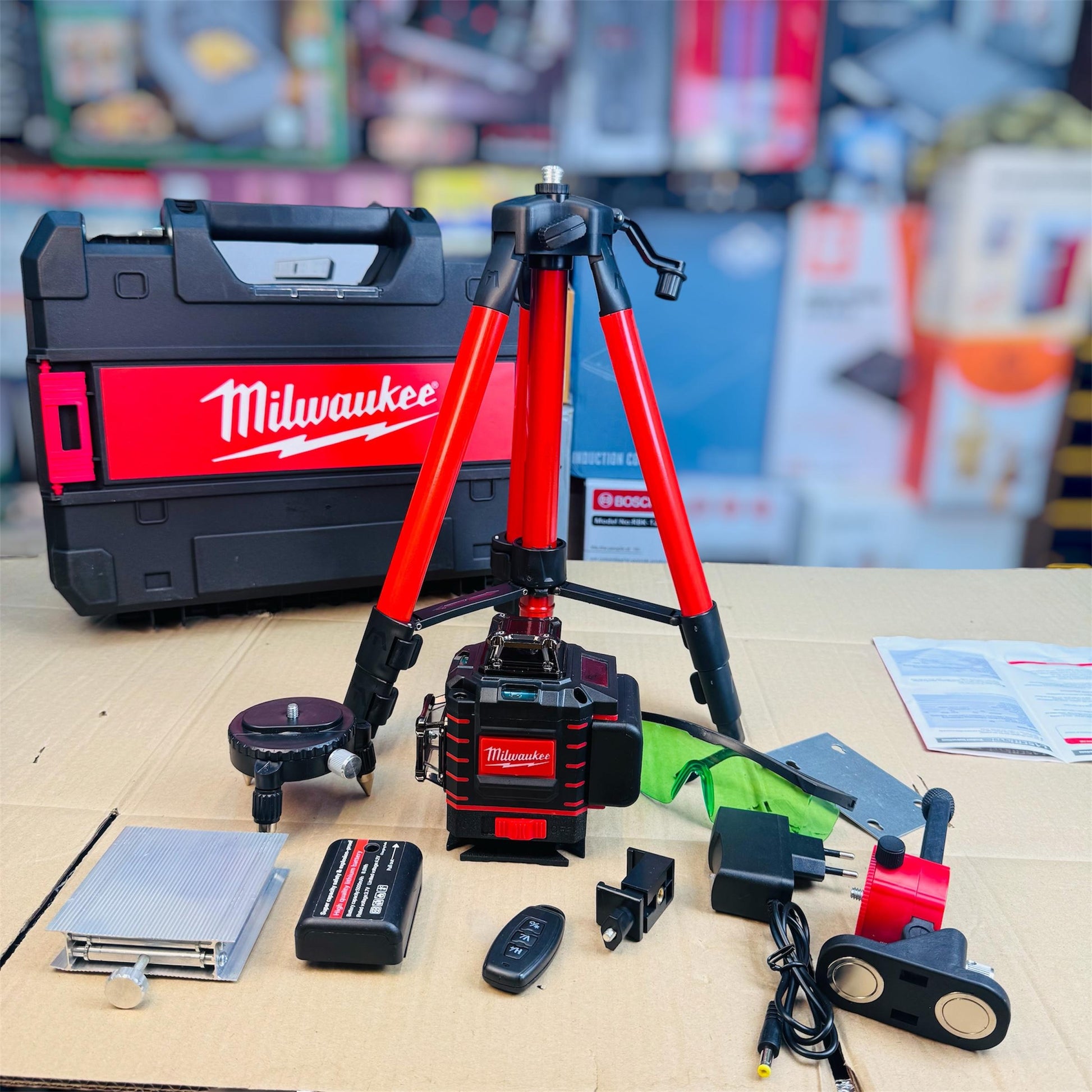

Mounting	1/4"-20 & 5/8"-11 threads with built-in rare-earth magnetic bracket

Key Features:

High-Visibility Green Laser Technology – High-intensity green diodes optimized for long-range visibility, easier for the eye to detect over distance than traditional red beam lasers

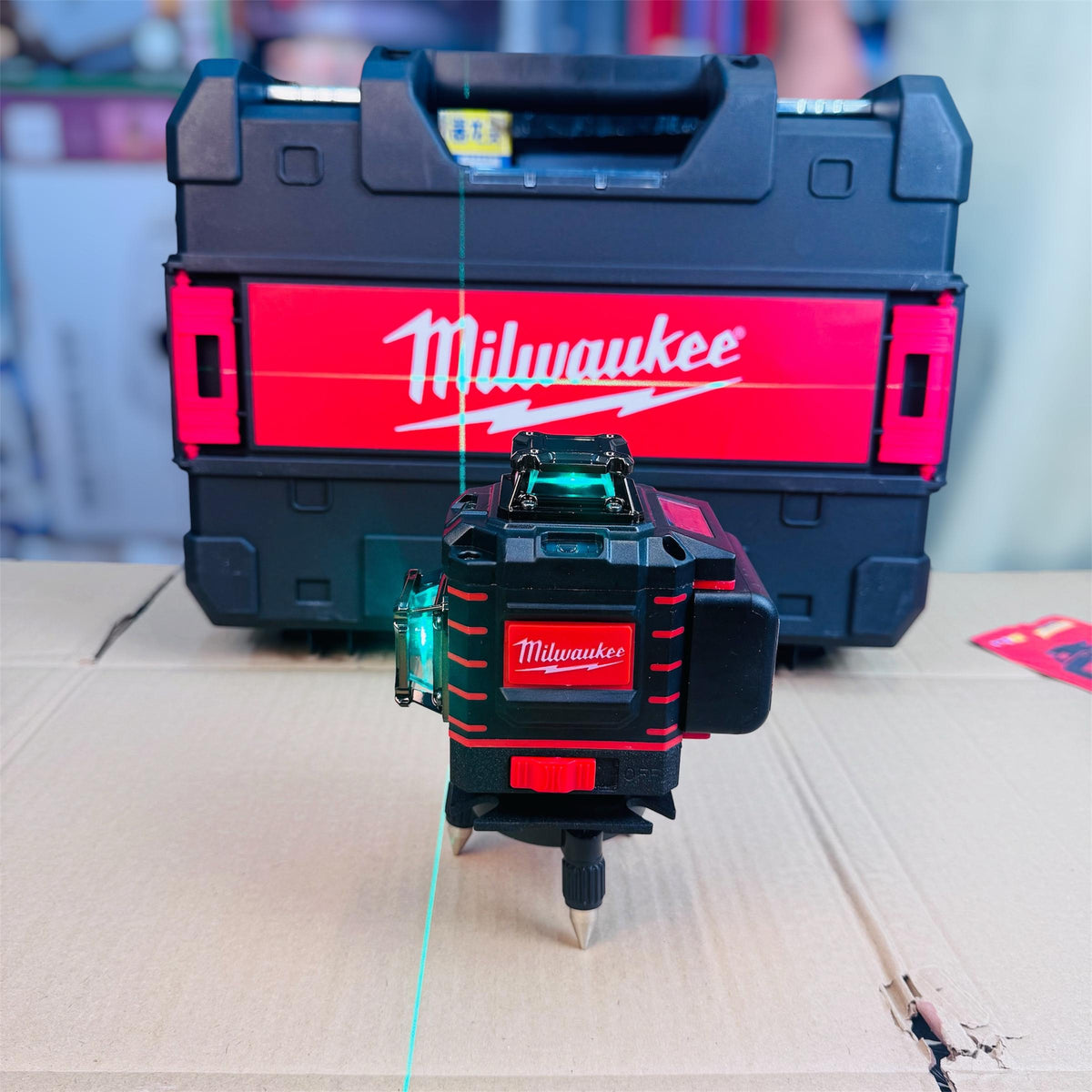

Multi-Plane 360° Projection – Simultaneously projects 1 horizontal level line and 2 vertical plumb lines crossing at 90° for fast squaring and transfers

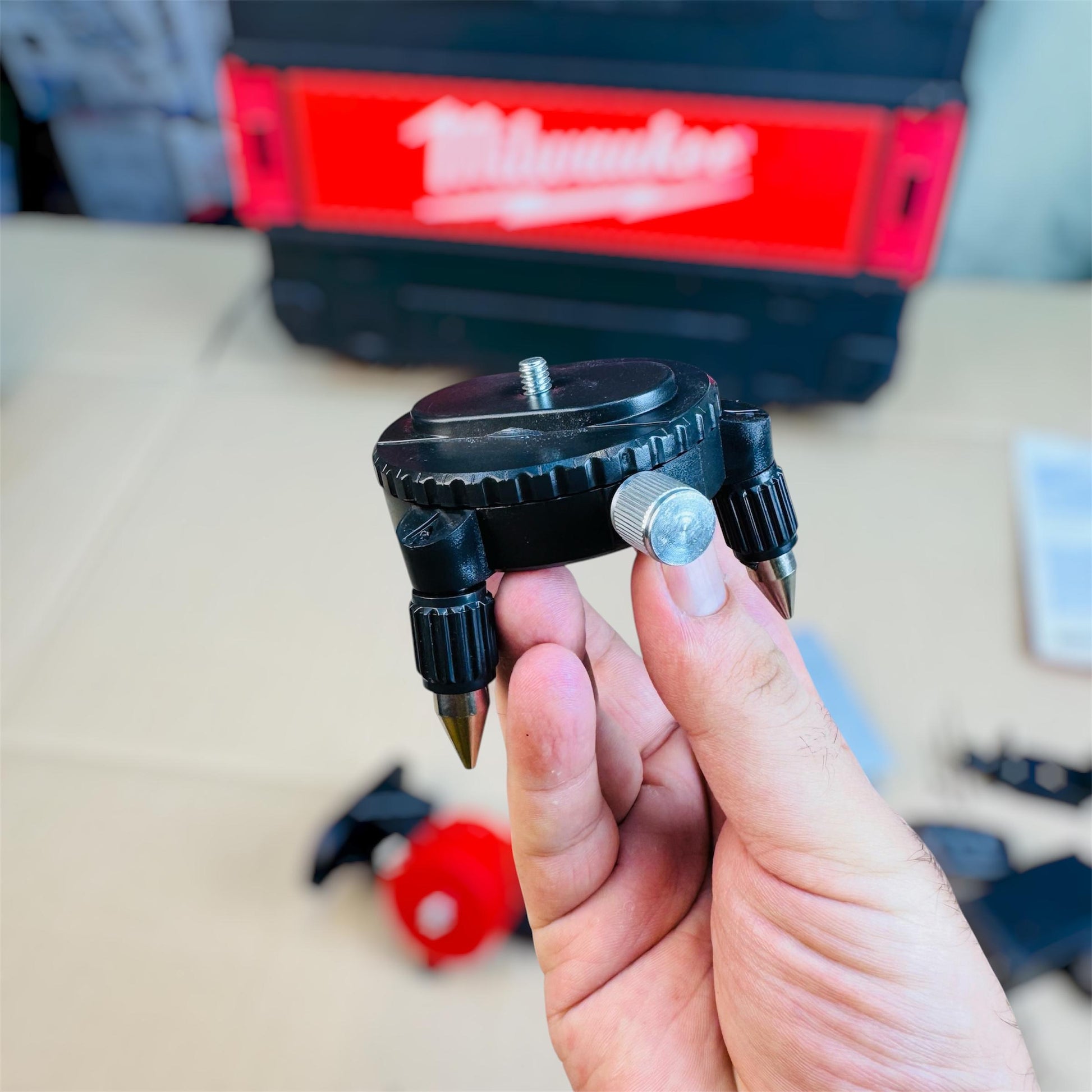

Micro-Pivoting Adjustment – Fine-adjustment knob allows precision rotation on the plumb point without losing the baseline reference
Auto Self-Levelling – Automatically levels within ±4° range and flashes/beeps if placed beyond tolerance
Manual/Angled Slope Mode – Locks the pendulum to project straight angled lines for stairs, railings, or diagonal tile layouts without triggering alarms
Transport Protection – Locking switch secures the internal pendulum during transport to prevent calibration damage

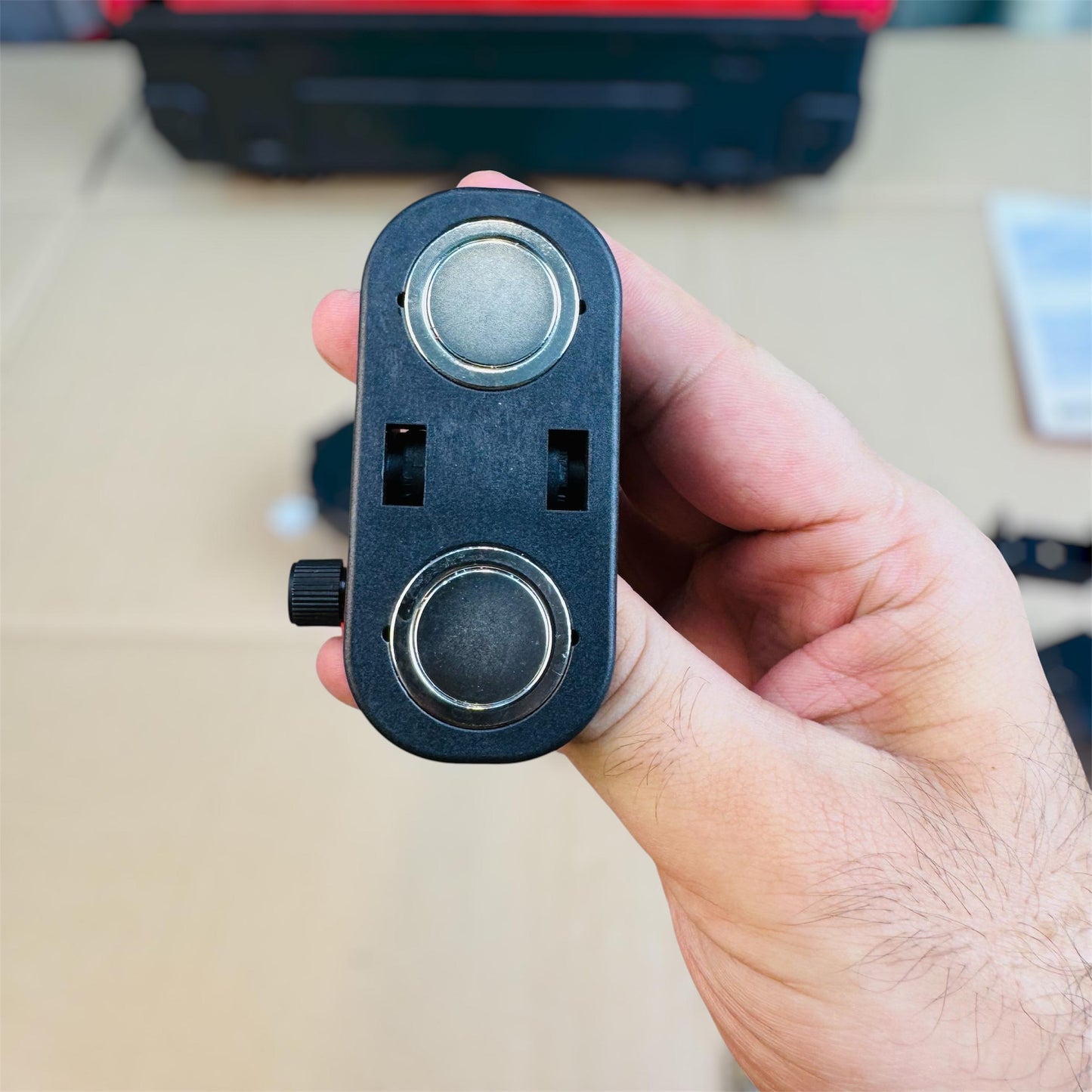

Jobsite-Ready Magnetic Bracket – Integrated rare-earth magnets lock onto steel studs, strut channels, or metal frames without slipping; includes mounting options for tripods, wall brackets, or track clamps

Common Applications:

Drywall & Framing – Squaring walls, aligning metal studs, installing drop-ceiling grids
Electrical & Plumbing – Aligning conduit runs, running light fixture grids, transferring floor-to-ceiling pipe locations
Carpentry & Cabinetry – Installing kitchen cabinets, dado rails, trim work, stair risers
Tiling & Flooring – Mapping out 90° grid lines across floors and walls simultaneously

Quick Operating Steps:

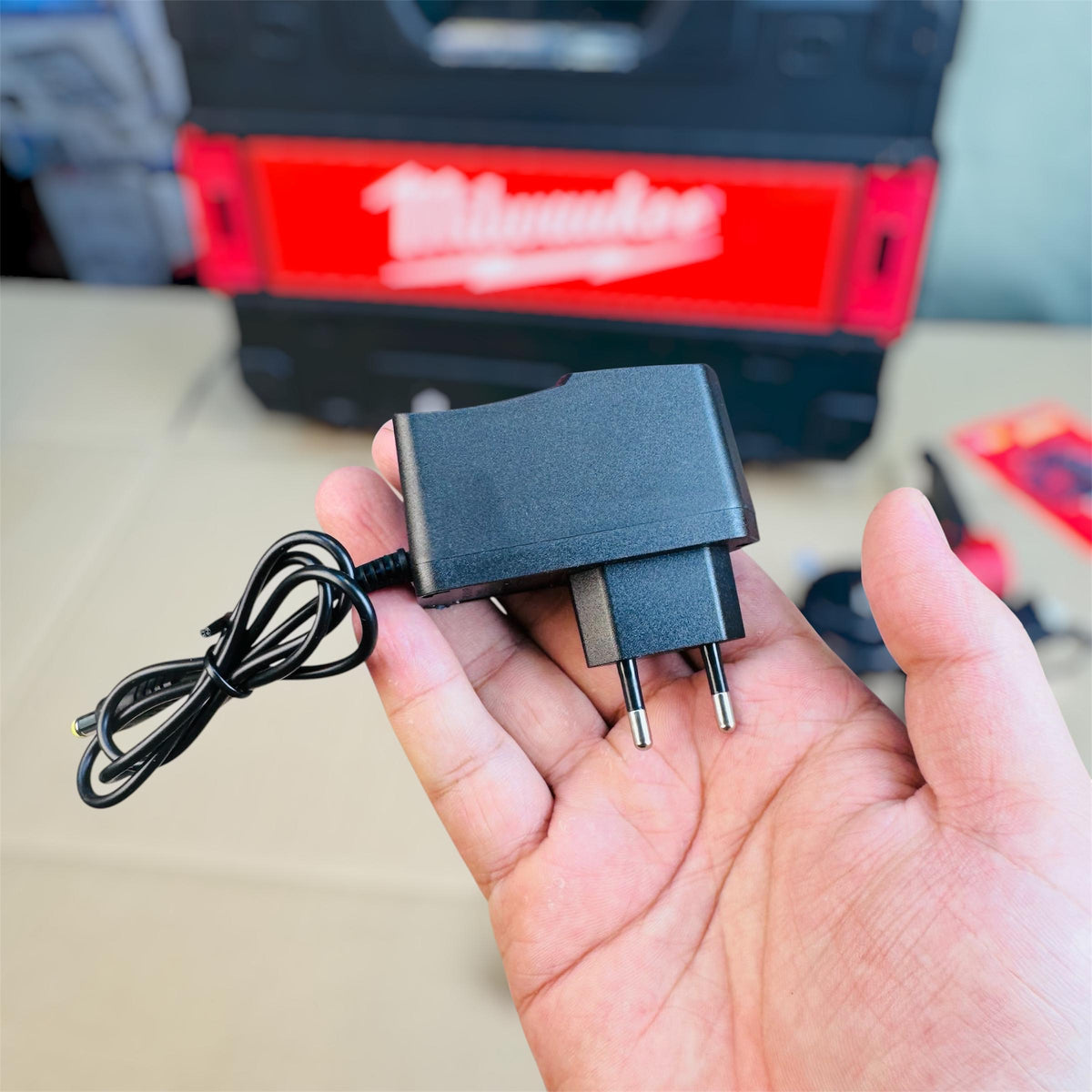

Charge & Insert Battery – Ensure the rechargeable battery pack is fully charged and securely locked in place

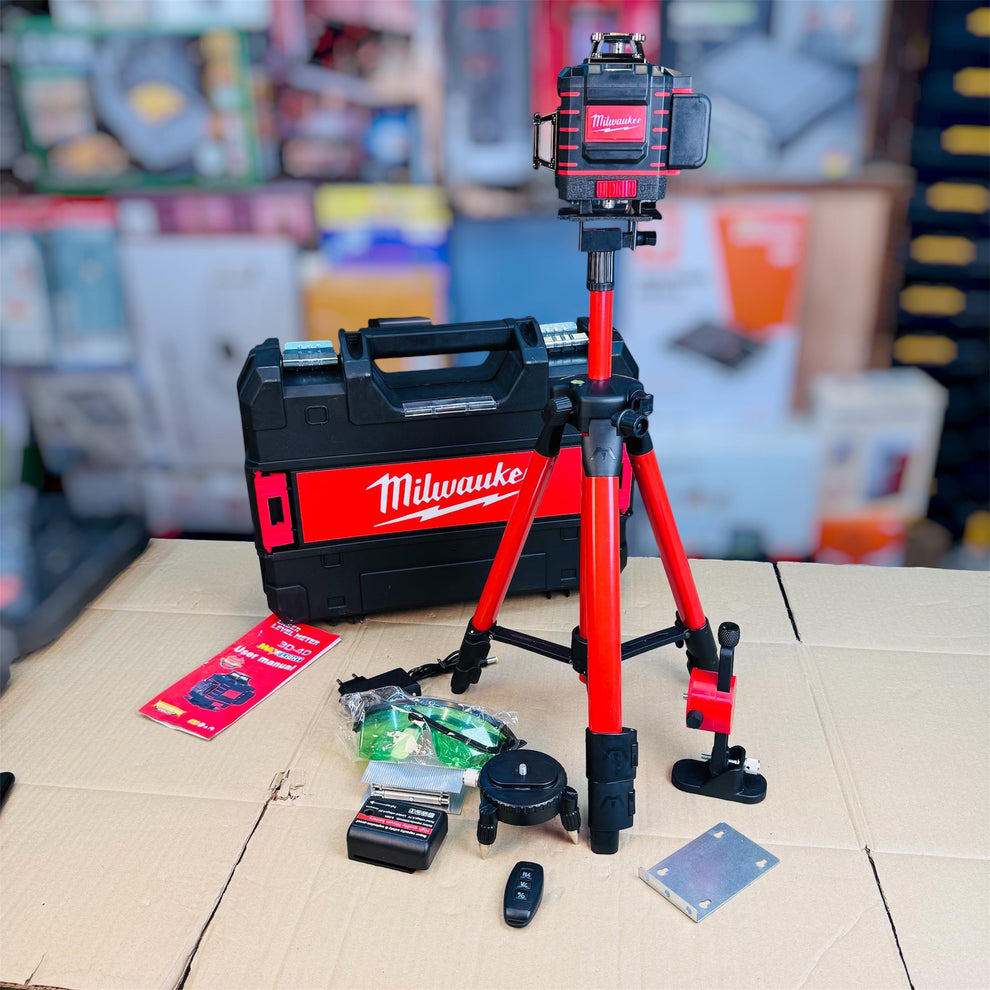

Mount & Position – Mount the unit on a tripod, clamp, or attach via the magnetic base to a steel stud
Unlock Pendulum – Switch the side switch from Lock to Unlock (Self-Levelling mode)
Select Laser Lines – Use the top touch/push panel to toggle horizontal and vertical 360° laser beams as needed

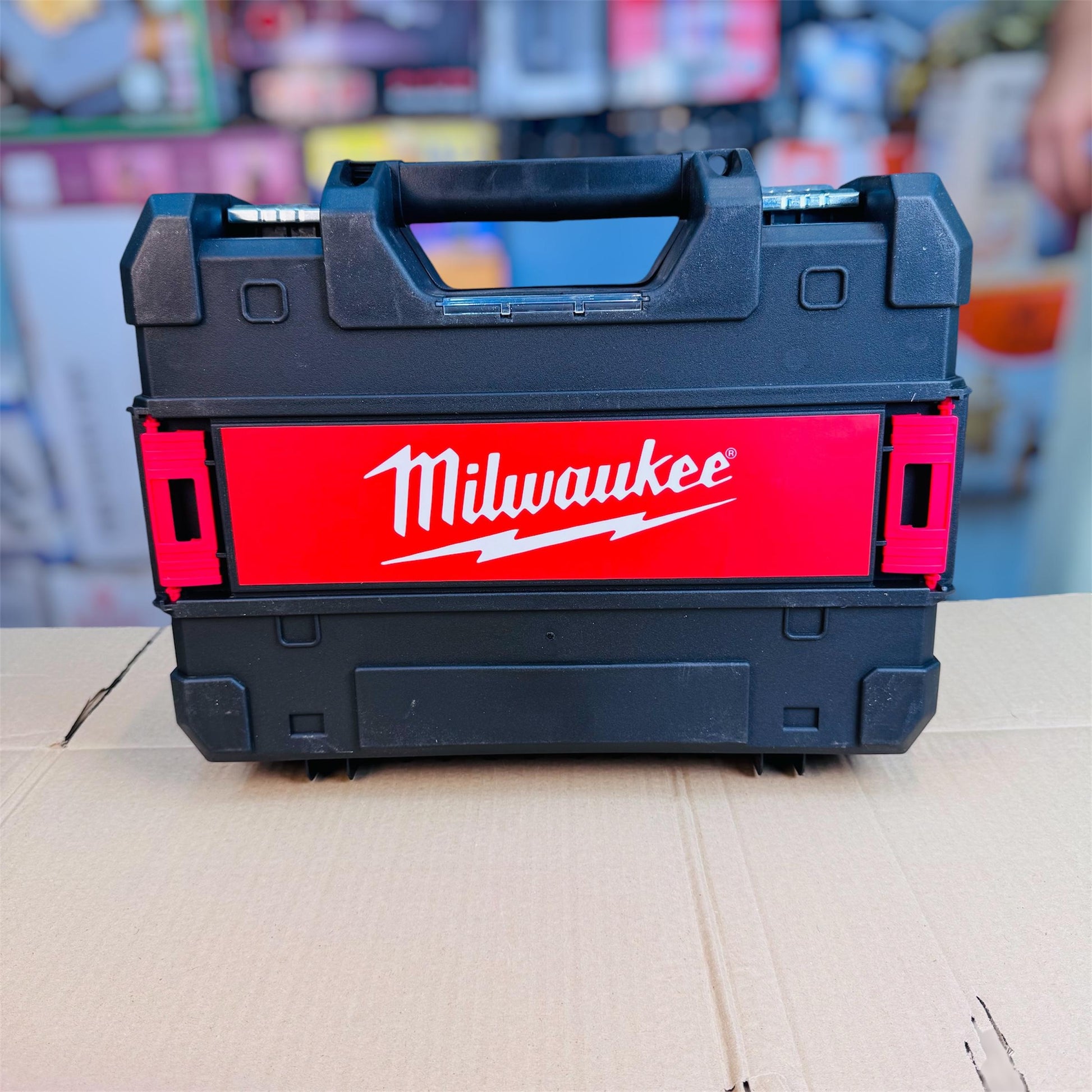

Lock for Storage – Always switch the pendulum back to Locked position before packing the tool in its protective carrying case
